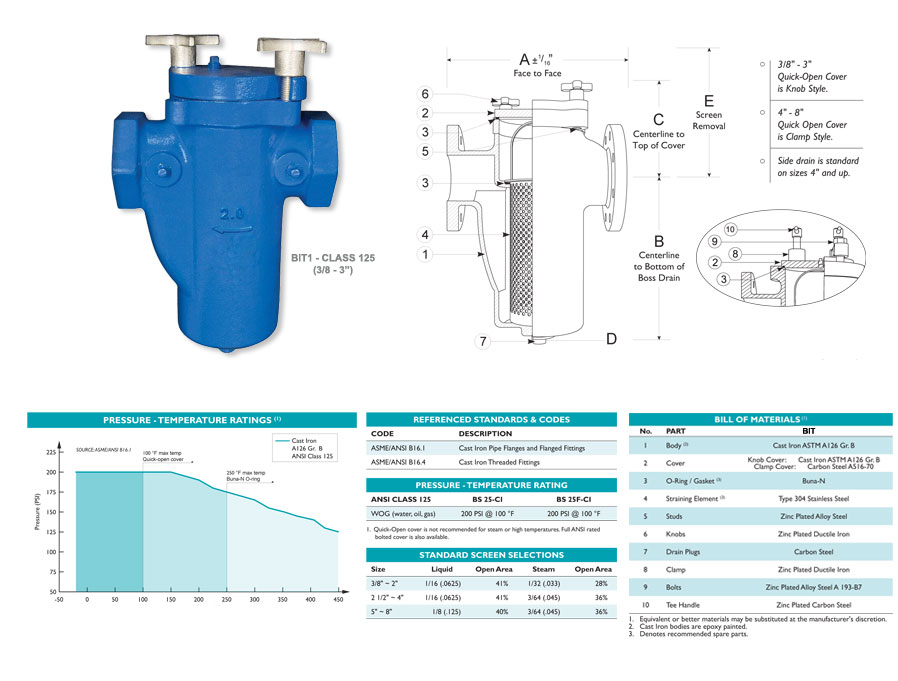

OVERVIEW: The Model BIT1 is a cast iron basket strainer with female thread ends that are rated as Class 125# and suitable for water, oil, or gas where protection from foreign matter in a pipeline is required. They are Lead Free, with an option for NSF and FDA epoxy coatings.
A quick open cover comes standard, but a full ANSI rated bolted cover is also available.
Pressure loss is minimized by providing an over the top flow path and large open area ratio. The straining capacity is a minimum of six times that of the connecting pipe. And with its large body and sizable straining element, this basket strainer has the ability to store large quantities of debris. It also features a machined seat with o-ring that enables fine filtrations down to 40 microns.
Utilizing a modified straining element, drains can be fitted with a Stayflow ball valve to allow for the automatic cleaning or flushing of the straining element while keeping the pipeline in service.
MODEL |
SIZE
(in)
|
ENDS | CLASS |
PRESS (WOG)
(psi)
|
WT
(lbs)
|
A
(in)
|
B
(in)
|
C
(in)
|
D
(in)
|
E
(in)
|
ITEM NO |
---|---|---|---|---|---|---|---|---|---|---|---|
BIT1 | 3/8 | THREADED | 125 | 200 @ 100F | 5.5 | 4.562 | 4 | 2.5 | 3/8 | 4.812 | BIT1TI038 |
BIT1 | 1/2 | THREADED | 125 | 200 @ 100F | 5.5 | 4.562 | 4 | 2.5 | 3/8 | 4.812 | BIT1TI050 |
BIT1 | 3/4 | THREADED | 125 | 200 @ 100F | 5 | 4.562 | 4 | 2.5 | 3/8 | 4.812 | BIT1TI075 |
BIT1 | 1 | THREADED | 125 | 200 @ 100F | 8 | 5.312 | 4.687 | 2.75 | 3/8 | 5.875 | BIT1TI100 |
BIT1 | 1 1/4 | THREADED | 125 | 200 @ 100F | 15 | 6.312 | 6.5 | 3 | 1/2 | 8.125 | BIT1TI125 |
BIT1 | 1 1/2 | THREADED | 125 | 200 @ 100F | 14 | 6.312 | 6.5 | 3 | 1/2 | 8.125 | BIT1TI150 |
BIT1 | 2 | THREADED | 125 | 200 @ 100F | 27 | 8.25 | 7.875 | 3.625 | 3/4 | 10.125 | BIT1TI200 |
BIT1 | 2 1/2 | THREADED | 125 | 200 @ 100F | 36 | 9.625 | 8.75 | 4 | 1 | 11.875 | BIT1TI250 |
BIT1 | 3 | THREADED | 125 | 200 @ 100F | 55.5 | 11.25 | 11.375 | 4.5 | 1 | 14.812 | BIT1TI300 |
