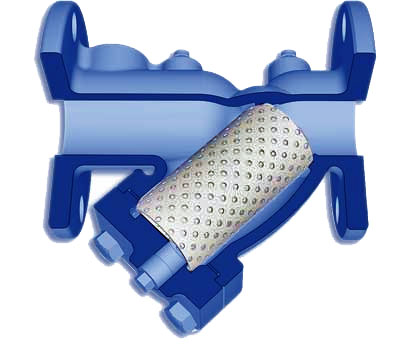

Y STRAINER CUTAWAY VIEW

OVERVIEW:  Stayflow Y strainers mechanically remove solids from flowing steam, gases or liquid piping systems with the use of a perforated or wire mesh straining screen, and are used to protect equipment. They get their names from their configuration, which includes a branch angled off the flow path.

Y strainers are most often used for steam and gases, but are also used for liquids. They have less debris holding capacity and higher pressure drops than basket strainers, but they can be used in either horizontal or vertical pipe runs where flow is downwards. They can also be fitted with a blow-off connection at the end of the branch end that includes a valve, which allows for cleaning. The valve is opened without shutting off the flow or disassembling the strainer, as the flow through the pipe will flush out the solids in the screen.



These strainers are usually supplied in one of four materials: iron, carbon steel, bronze, or stainless steel.  Iron is used most often because it costs the least, and has good corrosion resistance in many services. Carbon steel is used where higher temperatures, or concern with thermal or mechanical shock is an issue, which makes them popular in the oil and petrochemical industries. Bronze handles thermal and mechanical shock better than iron, and is better in some corrosive applications, but is limited in temperature range. Stainless steel is needed where corrosion could be an issue, and is widely used in the chemical, food, and pharmaceutical industries.



They are provided with a variety of end connections, including threaded, flanged, and welded.  Standard screens are provided for either steam service or WOG (water, oil, gas) service, but other screens are available on request.

                                                                             Y Strainer Choices

  • YIFF FLANGED IRON Y STRAINERS

    The Model YIFF is a cast iron Y strainer that is has drilled flanges that are in accordance with ASME B16.1. It comes in 125# and 250# class versions. Lead free. For steam, water, oil or gas service. 2" to 24" diameters.
  • YCF FLANGED CARBON STEEL Y STRAINERS

    The Model YCF is a carbon steel Y strainer that has drilled flanges. It is available in 150#, 300#, 600#, 1500#, and 2500# classes. For steam, water, oil or gas service. 1/2" to 24" diameters.
  • YSF FLANGED STAINLESS STEEL Y STRAINERS

    The Model YSF is a stainless steel Y strainer that has drilled flanges. It is available in 150# , 300#, 600#, 1500#, and 2500# classes. For steam, water, oil or gas service. 1/2" to 24" diameters.
  • YAF FLANGED ALUMINUM BRONZE Y STRAINERS

    The Model YAF is a Lead Free aluminum bronze Y strainer that has drilled flanges, and is available in 150# class. For water, oil or gas service. 1/2" to 24" diameters.
  • YIF FLANGED IRON Y STRAINERS

    The Model YIF is a cast iron Y strainer that is has drilled flanges that are in accordance with ASME B16.1. YIF1 is 125# class, and YIF2 is 250# class. Lead free. For steam, water, oil or gas service. 2" to 18" diameters.
  • YCW WELD END CARBON STEEL Y STRAINERS

    The Model YCW is a carbon steel Y strainer that has butt weld ends. It is available in 150#, 300#, 600#, 1500#, and 2500# classes. For steam, water, oil or gas service. 1/2" to 12" diameters.
  • YSW WELD END STAINLESS STEEL Y STRAINERS

    The Model YSW is a stainless steel Y strainer that has butt weld ends. It is available in 150#, 300#, 600#, 1500#, and 2500# classes. For steam, water, oil or gas service. 1/2" to 12" diameters.
  • YDG GROOVED DUCTILE IRON STRAINER

    The Model YDG is an epoxy painted ductile iron Y strainer that has grooved ends for quick installation in piping systems.  For steam, water, oil or gas service. 2" to 12" diameters.
  • YIFU FLANGED UL FIRELINE Y STRAINERS

    The Model YIFU is a ductile iron Y strainer with flat-face flanges in accordance with ASME B16.42 Class 150. It is UL Listed to Subject 321 and coated in red epoxy for easy identification in fire protection systems. For fire pump and sprinkler line service. 2" to 12" diameters.
  • YIGU GROOVED UL FIRELINE Y STRAINERS

    The Model YIGU is a ductile iron Y strainer with grooved ends. It is UL Listed to Subject 321 and coated in red epoxy for easy identification in fire protection systems. For fire pump and sprinkler line service. 2" to 12" diameters.
  • YIFN FLANGED NSF Y STRAINERS

    The Model YIFN is a ductile iron Y strainer with flat-face ASME B16.42 Class 150 flanges and a white NSF/ANSI 61 & 372 epoxy finish. For potable water systems, including municipal and commercial service. 2" to 12" diameters. Certified safe for drinking water applications.
  • YIT THREADED CAST IRON Y STRAINERS

    The Model YIT is a cast iron strainer that has female NPT thread ends, and is 250# class. For steam, water, oil or gas service. 1/2" to 2" diameters.
  • YDT THREADED DUCTILE IRON Y STRAINERS

    The Model YDT2 is a ductile iron Y strainer that has female NPT thread ends, and is 300# class. Lead Free. For steam, water, oil or gas service. 1/4" to 3" diameters.
  • YCT THREADED CARBON STEEL Y STRAINERS

    The Model YCT3 and YCT5 are rugged carbon steel Y strainers that are 600# class and 1500# respectively, that have female NPT thread ends. For water, oil or gas service. 1/4" to 3" diameters.
  • YCS SOCKET END CARBON STEEL Y STRAINERS

    The Model YCS3, YCS5, and YCS6 are rugged carbon steel Y strainers that are 600# class, 1500# class, and 2500# class respectively, that have female socket weld ends. For water, oil or gas service. 1/4" to 3" diameters.
  • YST0 THREADED 304 STAINLESS STEEL Y STRAINER

    The Model YST0 are 304 stainless steel Y strainers that are 150# class. It has female NPT thread ends, and is used in 304SS pipe and in copper plumbing pipe systems. Lead Free. For water, oil or gas service. 1/2" to 2" diameters.
  • YST THREADED STAINLESS STEEL Y STRAINERS

    The Model YST3 and YST5 are rugged stainless steel Y strainers that are 600# class and 1500# respectively, that have female NPT thread ends. For water, oil or gas service. 1/4" to 3" diameters.
  • YSS SOCKET END STAINLESS STEEL Y STRAINERS

    The Model YSS3 and YSS5 are rugged stainless steel Y strainers that are 600# class and 1500# respectively, that have female socket weld ends. For water, oil or gas service. 1/4" to 3" diameters.
  • YBT THREADED BRONZE Y STRAINERS

    The Model YBT is a bronze Y strainer with female NPT thread ends. Exceptionally economical, but require large minimum quantity orders. For steam, water, oil or gas service. 1/2" to 3" diameters.
  • YBS SOCKET END BRONZE Y STRAINERS

    The Model YBS is a bronze Y strainer with solder joint female sweat ends in accordance with ASME B16.18. For liquid (WOG) service. 1/4" to 2" diameters.
  • YET THREADED BRASS Y STRAINERS

    The Model YET is a brass Y strainer with female NPT thread ends. Lead Free. For liquid (WOG) service. 1/4" to 3" diameters.
  • YES SOCKET END BRASS Y STRAINERS

    The Model YES is a brass Y strainer with solder joint female sweat ends in accordance with ASME B16.18. Lead Free. For liquid (WOG) service. 1/4" to 3" diameters.
  • YAT THREADED ALUMINUM BRONZE Y STRAINERS

    The Model YAT is a aluminum bronze Y strainer with female NPT thread ends. Lead Free. For liquid (WOG) service. 1/4" to 3" diameters.
  • YSD COPPER ENDS STAINLESS Y STRAINERS

    The Model YSD is 304 stainless steel Y strainers that has copper sweat ends for plumbing and other service. The stainless body is superior to bronze, but it remains economical. It is used in copper plumbing pipe systems, and is Lead Free. For water. 1/4" to 2" diameters.
  • YP & YH PVC-CPVC STRAINERS

    The Model YP and YH strainers are made from PVC and CPVC respectively, and they are available with Socket or Union ends, as well as Thread and Flanged end connections. Used in PVC & CPVC piping systems. 1/2" to 4" diameters.
  • YFF FRP STRAINERS

    The YFF Y strainer is an FRP fiberglass construction for special services. Available in 2" to 14" diameters.
  • YFF-LINED FRP STRAINERS

    The YFF-Lined Y strainer is an FRP design with a PVC, CPVC, Polypropylene, or PVDF liner and screen for chemical and special services. Available in 2" to 14" diameters.
  • SD SUCTION DIFFUSER

    The SD Suction Diffuser connects to the suction side of a pump, and incorporates the functions of a strainer, flow straightener, and elbow in one compact component. 2" to 8" diameters.
