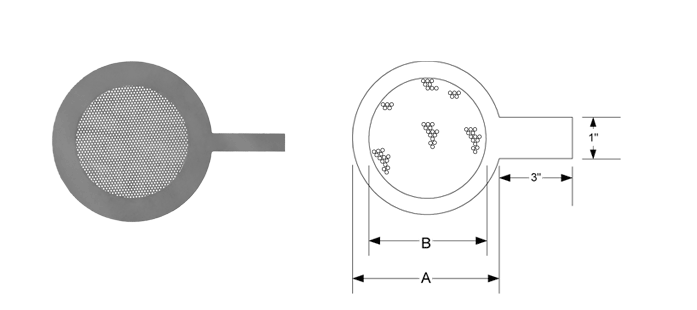

OVERVIEW: The Model TP1 Temporary Plate Strainer can be used in steam, water, oil or gas service, and are installed between two flanges for quick protection of equipment. They can be constructed of carbon steel or stainless steel. The pipe must be disassembled to inspect, clean, or remove these strainers.
Unless otherwise specified, a 1/8" perforated 304 stainless steel screen will be supplied, but different size perforations and meshes are available in stainless steel, monel, and brass. Handles are normally 3" long by 1" wide.
See the submittal sheet for additional standard technical data.
swipe to see more products
| MODEL |
SIZE
(in)
|
CLASS |
A
(in)
|
B
(in)
|
ITEM NO |
|---|---|---|---|---|---|
| TP1 | 1-1/2 | 150 | 3-1/4 | 1-1/4 | TP10150 |
| TP2 | 1-1/2 | 300 | 3-1/4 | 1-1/4 | TP20150 |
| TP3 | 1-1/2 | 600 | 3-5/8 | 1-1/4 | TP30150 |
| TP1 | 2 | 150 | 4 | 1-3/4 | TP10200 |
| TP2 | 2 | 300 | 4 | 1-3/4 | TP20200 |
| TP3 | 2 | 600 | 4-1/4 | 1-3/4 | TP30200 |
| TP1 | 2-1/2 | 150 | 4-3/4 | 2-1/4 | TP10250 |
| TP2 | 2-1/2 | 300 | 4-3/4 | 2-1/4 | TP30250 |
| TP3 | 2-1/2 | 600 | 5 | 2-1/4 | TP30250 |
| TP1 | 3 | 150 | 5-1/4 | 2-3/4 | TP10300 |
| TP2 | 3 | 300 | 5-1/4 | 2-3/4 | TP20300 |
| TP3 | 3 | 600 | 5-3/4 | 2-3/4 | TP30300 |
| TP1 | 4 | 150 | 6-3/4 | 3-3/4 | TP10400 |
| TP2 | 4 | 300 | 6-3/4 | 3-3/4 | TP20400 |
| TP3 | 4 | 600 | 7-1/2 | 3-3/4 | TP30400 |
| TP1 | 6 | 150 | 8-5/8 | 5-3/8 | TP10600 |
| TP2 | 6 | 300 | 8-5/8 | 5-3/8 | TP20600 |
| TP3 | 6 | 600 | 10-3/8 | 5-3/8 | TP30600 |
| TP1 | 8 | 150 | 10-7/8 | 7-3/8 | TP10800 |
| TP2 | 8 | 300 | 10-7/8 | 7-3/8 | TP20800 |
| TP3 | 8 | 600 | 12-1/2 | 7-3/8 | TP30800 |
| TP1 | 10 | 150 | 13-1/4 | 9-3/8 | TP11000 |
| TP2 | 10 | 300 | 13-1/4 | 9-3/8 | TP21000 |
| TP3 | 10 | 600 | 15-5/8 | 9-3/8 | TP31000 |
| TP1 | 12 | 150 | 16 | 11 | TP11200 |
| TP2 | 12 | 300 | 16 | 11 | TP21200 |
| TP3 | 12 | 600 | 17-7/8 | 11 | TP31200 |
| TP1 | 14 | 150 | 17-3/8 | 12-1/4 | TP11400 |
| TP2 | 14 | 300 | 17-3/8 | 12-1/4 | TP21400 |
| TP3 | 14 | 600 | 19 | 12-1/4 | TP31400 |
| TP1 | 16 | 150 | 20-1/8 | 14 | TP11600 |
| TP2 | 16 | 300 | 20-1/8 | 14 | TP21600 |
| TP3 | 16 | 600 | 21-7/8 | 14 | TP31600 |
| TP1 | 18 | 150 | 21-1/4 | 15-3/4 | TP11800 |
| TP2 | 18 | 300 | 21-1/4 | 15-3/4 | TP21800 |
| TP3 | 18 | 600 | 23-3/4 | 15-3/4 | TP31800 |
| TP1 | 20 | 150 | 23-1/2 | 17-1/2 | TP12000 |
| TP2 | 20 | 300 | 23-1/2 | 17-1/2 | TP22000 |
| TP3 | 20 | 600 | 26-5/8 | 17-1/2 | TP32000 |
| TP1 | 24 | 150 | 27-7/8 | 21-1/4 | TP12400 |
| TP2 | 24 | 300 | 27-7/8 | 21-1/4 | TP22400 |
| TP3 | 24 | 600 | 30-7/8 | 21-1/4 | TP32400 |
