OVERVIEW: Stayflow makes actuation easy by matching each valve type and size with the appropriate actuator for proper operating torque and cycle time to assure optimum performance. All actuation packages include valve, actuator mounting, coupling, and precision actuator factory assembled with any purchased accessories, ready for installation.

The Electro Actuated Ball Valve provides high quality, basic on-off electrical actuation at an economical price, with voltage options and special "2-wire" control available. This prepackaged combination is constructed with an all plastic NEMA 4X enclosure directly mounted to a PVC or CPVC valve body for lighter weight and a low profile design for minimal space requirements. All Electro Series Ball Valves are pressure rated to 235 psi and suitable for vacuum service. Available in IPS sizes 1/2" - 2", with socket, threaded, or flanged ends and choice of EPDM or FKM O-ring seals.

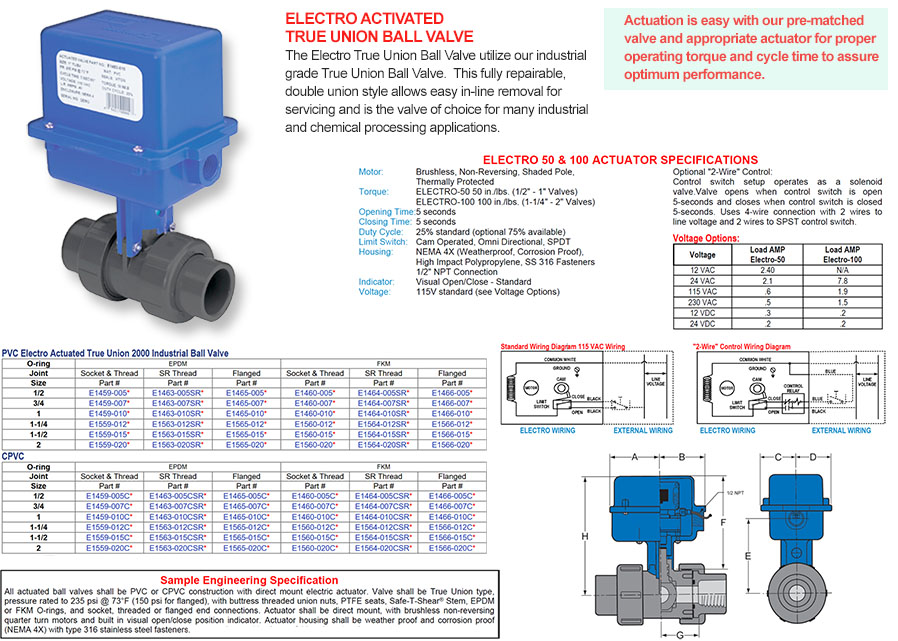

ELECTRO ACTUATED TRUE UNION BALL VALVE The Electro True Union Ball Valve utilizes Stayflow industrial grade True Union Ball Valve. This fully repairable, double union style allows easy in-line removal for servicing and is the valve of choice for many industrial and chemical processing applications.


Illustration Image
