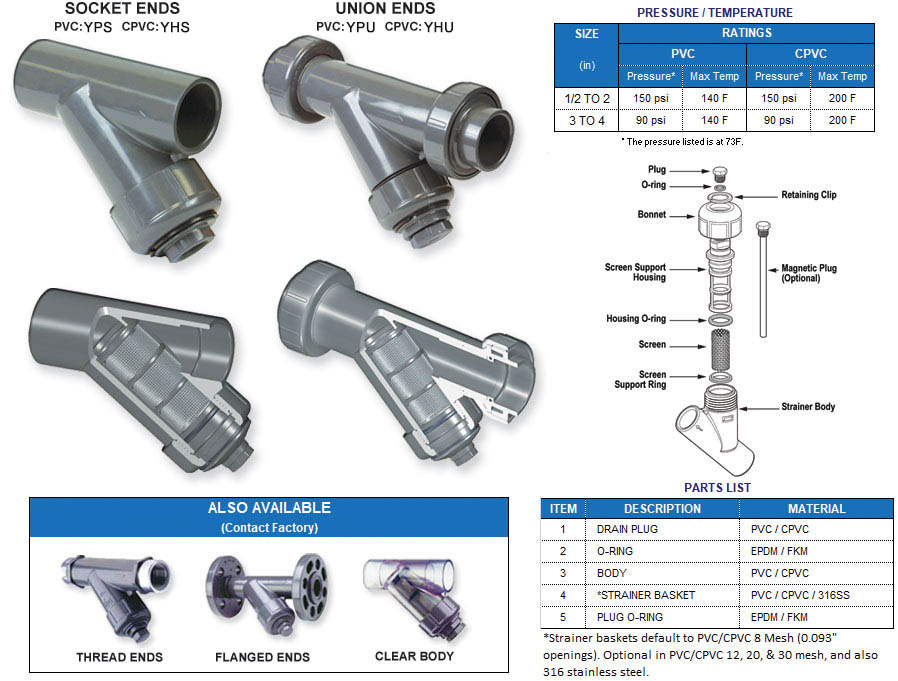

OVERVIEW: The Models YP and YH are non-metallic Y-strainers molded from Schedule 80 PVC and Schedule 80 CPVC, respectively, for use in aggressive fluid systems where metal components are not suitable. These strainers are ideal for chemical processing, water treatment, plating, aquatics, and other corrosive or high-purity environments. The YP offers excellent chemical resistance at ambient temperatures, while the YH withstands higher fluid temperatures up to 180°F. Both models are available with either socket or NPT threaded ends, and sizes range from ½″ to 4″. Their compact body design provides a large filtration cavity and open-area screen chamber to reduce pressure drop. The standard polypropylene screen is field-replaceable, with optional stainless steel or mesh inserts available. A blow-off port is included for inline cleaning, and smaller sizes may include a clear PVC cover for easy inspection.
| • Body: PVC (YP) or CPVC (YH), Schedule 80 | • Sizes: ½″ to 4″ |
| • Ends: Socket or threaded | • Pressure rating: 150 psi @ 70°F (YP); 125 psi @ 180°F (YH) |
| • Screen: Polypropylene standard; optional SS or mesh | • Cover: Threaded cap or clear PVC on select sizes |
| • Ports: Tapped blow-off port | • Applications: Chemical processing, water treatment, plating, aquatics, non-metallic piping systems |
Complete dimensional and material data—see Submittal Sheet
swipe to see more products
| MODEL |
SIZE
(in)
|
ENDS | BODY MTL | STD SCREEN | Cv |
WT
(lbs)
|
A
(in)
|
B
(in)
|
C
(in)
|
D
(in)
|
E
(in)
|
ITEM NO |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| YPS | 1/2 | SOCKET | PVC | 8 MESH PVC | 5.5 | .31 | 3-1/16 | 1-9/16 | 3-3/8 | 2-9/16 | 1-5/8 | YPSEP0050 |
| YPS | 3/4 | SOCKET | PVC | 8 MESH PVC | 8.2 | .5 | 3-11/16 | 2 | 4 | 3 | 2 | YPSEP0075 |
| YPS | 1 | SOCKET | PVC | 8 MESH-PVC | 14.3 | 0.85 | 4-7/16 | 2-1/2 | 4-3/4 | 3-5/8 | 2-1/4 | YPSEP0100 |
| YPS | 1-1/4 | SOCKET | PVC | 8 MESH-PVC | 33.6 | 1.21 | 5-5/16 | 3-1/16 | 5-9/16 | 4-1/4 | 2-13/16 | YPSEP0125 |
| YPS | 1-1/2 | SOCKET | PVC | 8 MESH-PVC | 43.8 | 1.66 | 6 | 3-9/16 | 6-5/16 | 4-7/8 | 3-3/16 | YPSEP0150 |
| YPS | 2 | SOCKET | PVC | 8 MESH-PVC | 50.6 | 2.96 | 7-5/8 | 4-1/2 | 7-1/2 | 6-3/16 | 3-1/2 | YPSEP0200 |
| YPS | 3 | SOCKET | PVC | 8 MESH-PVC | 75.2 | 5.34 | 9-11/16 | 6-9/16 | 10-5/16 | 7-5/8 | 5-1/8 | YPSEP0300 |
| YPS | 4 | SOCKET | PVC | 8 MESH-PVC | 169.5 | 9.97 | 12-1/2 | 8-5/8 | 13-1/8 | 9-7/8 | 6-9/16 | YPSEP0400 |
| YPF | 1/2 | FLANGED | PVC | 8 MESH-PVC | 5.5 | 0.85 | 4-3/16 | 5-11/16 | 3-1/2 | 2-1/2 | 1-5/8 | YPFEP0050 |
| YPF | 3/4 | FLANGED | PVC | 8 MESH-PVC | 8.2 | 1.28 | 5 | 6-7/16 | 3-7/8 | 3-1/8 | 2 | YPFEP0075 |
| YPF | 1 | FLANGED | PVC | 8 MESH-PVC | 14.3 | 1.81 | 5-3/4 | 7-1/4 | 4-1/4 | 3-5/8 | 2-1/4 | YPFEP0100 |
| YPF | 1-1/4 | FLANGED | PVC | 8 MESH-PVC | 33.6 | 2.52 | 6-9/16 | 8-1/8 | 4-5/8 | 4-9/32 | 2-13/16 | YPFEP0125 |
| YPF | 1-1/2 | FLANGED | PVC | 8 MESH-PVC | 43.8 | 3.25 | 7-3/8 | 9-3/16 | 5 | 4-7/8 | 3-3/16 | YPFEP0150 |
| YPF | 2 | FLANGED | PVC | 8 MESH-PVC | 50.6 | 5.42 | 9-1/8 | 10-3/8 | 6 | 6-3/16 | 3-1/2 | YPFEP0200 |
| YPF | 3 | FLANGED | PVC | 8 MESH-PVC | 75.2 | 10.07 | 11-3/8 | 12-1/32 | 7-1/2 | 7-5/8 | 5-1/8 | YPFEP0300 |
| YPF | 4 | FLANGED | PVC | 8 MESH-PVC | 169.5 | 16.15 | 14-5/16 | 14-9/16 | 9-1/16 | 9-7/8 | 6-9/16 | YPFEP0400 |
| YPT | 1/2 | THREADED | PVC | 8 MESH-PVC | 5.5 | 0.31 | 4-11/16 | 3-5/8 | 5-1/16 | 4 | 2-3/8 | YPTEP0050 |
| YPT | 3/4 | THREADED | PVC | 8 MESH-PVC | 8.2 | 0.50 | 5-7/16 | 4-3/8 | 5-13/16 | 4-9/16 | 2-3/8 | YPTEP0075 |
| YPT | 1 | THREADED | PVC | 8 MESH-PVC | 14.3 | 0.85 | 6-1/8 | 5-3/16 | 7 | 5-1/8 | 2-3/8 | YPTEP0100 |
| YPT | 1-1/4 | THREADED | PVC | 8 MESH-PVC | 33.6 | 1.21 | 7-3/4 | 6 | 7-15/16 | 6-1/2 | 3-1/2 | YPTEP0125 |
| YPT | 1 1/2 | THREADED | PVC | 8 MESH-PVC | 43.8 | 1.66 | 8-7/8 | 6-15/16 | 8-13/16 | 7-1/2 | 3-1/2 | YPTEP0150 |
| YPT | 2 | THREADED | PVC | 8 MESH-PVC | 50.6 | 2.96 | 10-3/16 | 8-1/8 | 10-1/8 | 8-1/2 | 3-1/2 | YPTEP0200 |
| YPT | 3 | THREADED | PVC | 8 MESH-PVC | 75.2 | 5.34 | 14-13/16 | 11 | 14-1/4 | 12-7/16 | 6-5/8 | YPTEP0300 |
| YPT | 4 | THREADED | PVC | 8 MESH-PVC | 169.5 | 9.97 | 18-1/2 | 14 | 14-3/4 | 15-5/8 | 7-15/16 | YPTEP0400 |
| YPU | 1/2 | UNION THD | PVC | 8 MESH-PVC | 5.5 | 0.53 | 3-7/16 | 5-1/2 | 7 | 2-1/2 | 1-5/8 | YPUEP0050 |
| YPU | 3/4 | UNION THD | PVC | 8 MESH-PVC | 8.2 | 0.85 | 4-1/8 | 6-7/16 | 7-7/8 | 3 | 2 | YPUEP0075 |
| YPU | 1 | UNION THD | PVC | 8 MESH-PVC | 14.3 | 1.20 | 4-7/8 | 7-3/8 | 9 | 3-5/8 | 2-1/4 | YPUEP0100 |
| YPU | 1-1/4 | UNION THD | PVC | 8 MESH-PVC | 33.6 | 1.90 | 5-13/16 | 6-3/16 | 10-1/8 | 4-1/4 | 2-13/16 | YPUEP0125 |
| YPU | 1-1/2 | UNION THD | PVC | 8 MESH-PVC | 43.8 | 2.52 | 6-5/8 | 9 | 10-15/16 | 4-7/8 | 3-3/16 | YPUEP0150 |
| YPU | 2 | UNION THD | PVC | 8 MESH-PVC | 50.6 | 4.45 | 8-15/16 | 10-13/16 | 12-13/16 | 6-3/16 | 3-1/2 | YPUEP0200 |
| YPU | 3 | UNION THD | PVC | 8 MESH-PVC | 75.2 | 10.55 | 10-3/4 | 13-15/16 | 16-3/4 | 7-5/8 | 5-1/8 | YPUEP0300 |
| YPU | 4 | UNION THD | PVC | 8 MESH-PVC | 169.5 | 18.80 | 13-3/4 | 17-1/2 | 20-1/2 | 9-7/8 | 6-9/16 | YPUEP0400 |
| YSH | 1/2 | SOCKET | CPVC | 8 MESH-CPVC | 5.5 | 0.31 | 3-1/16 | 1-9/16 | 3-3/8 | 2-9/16 | 1-5/8 | YHSKH0050 |
| YHS | 3/4 | SOCKET | CPVC | 8 MESH-CPVC | 8.2 | 0.50 | 3-11/16 | 2 | 4 | 3 | 2 | YHSKH0075 |
| YHS | 1 | SOCKET | CPVC | 8 MESH-CPVC | 14.3 | 0.85 | 4-7/16 | 2-1/2 | 4-3/4 | 3-5/8 | 2-1/4 | YHSKH0100 |
| YHS | 1-1/4 | SOCKET | CPVC | 8 MESH-CPVC | 33.6 | 1.21 | 5-5/16 | 3-1/16 | 5-9/16 | 4-1/4 | 2-13/16 | YHSKH0125 |
| YHS | 1 1/2 | SOCKET | CPVC | 8 MESH-CPVC | 43.8 | 1.66 | 6 | 3-9/16 | 6-5/16 | 4-7/8 | 3-3/16 | YHSKH0150 |
| YHS | 2 | SOCKET | CPVC | 8 MESH-CPVC | 50.6 | 2.96 | 7-5/8 | 4-1/2 | 7-1/2 | 6-3/16 | 3-1/2 | YHSKH0200 |
| YHS | 3 | SOCKET | CPVC | 8 MESH-CPVC | 75.2 | 5.34 | 9-11/16 | 6-9/16 | 10-5/16 | 7-5/8 | 5-1/8 | YHSKH0300 |
| YHS | 4 | SOCKET | CPVC | 8 MESH-CPVC | 169.5 | 9.97 | 12-1/2 | 8-5/8 | 13-1/8 | 9-7/8 | 6-9/16 | YHSKH0400 |
| YHF | 1/2 | FLANGED | CPVC | 8 MESH-CPVC | 5.5 | 0.85 | 4-3/16 | 5-11/16 | 3-1/2 | 2-1/2 | 1-5/8 | YHFKH0050 |
| YHF | 3/4 | FLANGED | CPVC | 8 MESH-CPVC | 8.2 | 1.28 | 5 | 6-7/16 | 3-7/8 | 3-1/8 | 2 | YHFKH0075 |
| YHF | 1 | FLANGED | CPVC | 8 MESH-CPVC | 14.3 | 1.81 | 5-3/4 | 7-1/4 | 4-1/4 | 3-5/8 | 2-1/4 | YHFKH0100 |
| YHF | 1 1/4 | FLANGED | CPVC | 8 MESH-CPVC | 33.6 | 2.52 | 6-9/16 | 8-1/8 | 4-5/8 | 4-9/32 | 2-13/16 | YHFKH0125 |
| YHF | 1-1/2 | FLANGED | CPVC | 8 MESH-CPVC | 43.8 | 3.25 | 7-3/8 | 9-3/16 | 5 | 4-7/8 | 3-3/16 | YHFKH0150 |
| YHF | 2 | FLANGED | CPVC | 8 MESH-CPVC | 50.6 | 5.42 | 9-1/8 | 10-3/8 | 6 | 6-3/16 | 3-1/2 | YHFKH0200 |
| YHF | 3 | FLANGED | CPVC | 8 MESH-CPVC | 75.2 | 10.07 | 11-3/8 | 12-1/32 | 7-1/2 | 7-5/8 | 5-1/8 | YHFKH0300 |
| YHF | 4 | FLANGED | CPVC | 8 MESH-CPVC | 169.5 | 16.15 | 14-5/16 | 14-9/16 | 9-1/16 | 9-7/8 | 6-9/16 | YHFKH0400 |
| YHT | 1/2 | THREADED | CPVC | 8 MESH-CPVC | 5.5 | 0.31 | 4-11/16 | 3-5/8 | 5-1/16 | 4 | 2-3/8 | YHTKH0050 |
| YHT | 3/4 | THREADED | CPVC | 8 MESH-CPVC | 8.2 | 0.50 | 5-7/16 | 4-3/8 | 5-13/16 | 4-9/16 | 2-3/8 | YHTKH0075 |
| YHT | 1 | THREADED | CPVC | 8 MESH-CPVC | 14.3 | 0.85 | 6-1/8 | 5-3/16 | 7 | 5-1/8 | 2-3/8 | YHTKH0100 |
| YHT | 1 1/4 | THREADED | CPVC | 8 MESH-CPVC | 33.6 | 1.21 | 7-3/4 | 6 | 7/15/16 | 6-1/2 | 3-1/2 | YHTKH0125 |
| YHT | 1 1/2 | THREADED | CPVC | 8 MESH-CPVC | 43.8 | 1.66 | 8-7/8 | 6-15/16 | 8-13/16 | 7-1/2 | 3-1/2 | YHTKH0150 |
| YHT | 2 | THREADED | CPVC | 8 MESH-CPVC | 50.6 | 2.96 | 10-3/16 | 8-1/8 | 10-1/8 | 8-1/2 | 3-1/2 | YHTKH0200 |
| YHT | 3 | THREADED | CPVC | 8 MESH-CPVC | 75.2 | 5.34 | 14-13/16 | 11 | 14-1/4 | 12-7/16 | 6-5/8 | YHTKH0300 |
| YHT | 4 | THREADED | CPVC | 8 MESH-CPVC | 169.5 | 9.97 | 18-1/2 | 14 | 14-3/4 | 15-5/8 | 7-15/16 | YHTKH0400 |
| YHU | 1/2 | UNION THD | CPVC | 8 MESH-CPVC | 5.5 | 0.53 | 3-7/16 | 5-1/2 | 7 | 2-1/2 | 1-5/8 | YHUKH0050 |
| YHU | 3/4 | UNION THD | CPVC | 8 MESH-CPVC | 8.2 | 0.85 | 4-1/8 | 6-7/16 | 7-7/8 | 3 | 2 | YHUKH0075 |
| YHU | 1 | UNION THD | CPVC | 8 MESH-CPVC | 14.3 | 1.20 | 4-7/8 | 7-3/8 | 9 | 3-5/8 | 2-1/4 | YHUKH0100 |
| YHU | 1 1/4 | UNION THD | CPVC | 8 MESH-CPVC | 33.6 | 1.90 | 5-13/16 | 6-3/16 | 10-1/8 | 4-1/4 | 2-13/16 | YHUKH0125 |
| YHU | 1 1/2 | UNION THD | CPVC | 8 MESH-CPVC | 43.8 | 2.52 | 6-5/8 | 9 | 10-15/16 | 4-7/8 | 3-3/16 | YHUKH0150 |
| YHU | 2 | UNION THD | CPVC | 8 MESH-CPVC | 50.6 | 4.45 | 8-15/16 | 10-13/16 | 12-13/16 | 6-3/16 | 3-1/2 | YHUKH0300 |
| YHU | 3 | UNION THD | CPVC | 8 MESH-CPVC | 75.2 | 10.55 | 10-3/4 | 13-15/16 | 16-3/4 | 7-5/8 | 5-1/8 | YHUKH0300 |
| YHU | 4 | UNION THD | CPVC | 8 MESH-CPVC | 169.5 | 18.80 | 13-3/4 | 17-1/2 | 20-1/2 | 9-7/8 | 6-9/16 | YHUKH0400 |
