OVERVIEW: The Model YSF is a premium-grade stainless steel Y-strainer engineered for aggressive and sanitary process environments. Constructed from CF8M (316 stainless steel), it offers excellent corrosion resistance and is ideal for chemical, food & beverage, pharmaceutical, and seawater systems. Available in ANSI Classes 150, 300, 600, 1500, and 2500, the YSF handles pressures up to 6,000 psi in select configurations and comes in sizes ranging from ½″ to 12″. Its deep straining cavity and large screen surface ensure high debris-holding capacity and low pressure drop. The 304 or 316 stainless steel perforated screen is standard, with fine mesh options for particulate-sensitive systems. Each unit is hydrostatically tested to 1.5× design pressure, and the bolted cover allows for easy maintenance access. A blow-off port is provided for inline flushing.
| • Body: CF8M (316 stainless steel) | • Pressure classes: ANSI 150–2500 | ||
| • Ends: Raised-face flanged per ASME B16.5 | • Screen: 304 or 316 SS perforated, with mesh options | ||
| • Cover: Bolted blind flange with gasketed seal | • Blow-off port: Provided; NPT-threaded with plug | ||
| • Tested: Hydrotested at 1.5× design pressure | • Service: Compatible with steam, seawater, chemical, clean process fluids |

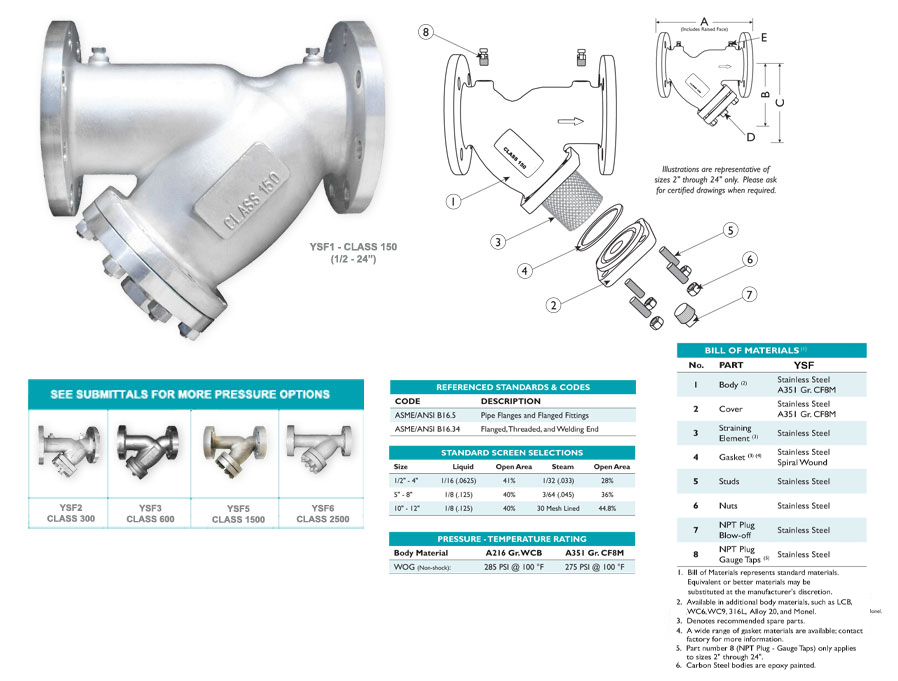

Complete dimensional and material data—see Submittal Sheet.
swipe to see more products
| MODEL |
SIZE
(in)
|
ENDS | CLASS |
PRESS (STEAM)
(psi)
|
PRESS (WOG)
(psi)
|
WT
(lbs)
|
A
(in)
|
B
(in)
|
C
(in)
|
D
(in)
|
E
(in)
|
ITEM NO |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| YSF1 | 1/2 | 150# FLGS | 150 | 150 @ 366F | 285 @ 100F | 5.5 | 6.5 | 3.5 | 5 | 3/8 | N/A | YSF1T10050 |
| YSF1 | 3/4 | 150# FLGS | 150 | 150 @ 100F | 285 @ 100F | 10.3 | 7.37 | 3.75 | 5 | 1/2 | N/A | YSF1TI0075 |
| YSF1 | 1 | 150# FLGS | 150 | 150 @ 366F | 285 @ 100F | 10.3 | 7.37 | 3.75 | 5 | 1/2 | N/A | YSF1TI0100 |
| YSF1 | 1 1/4 | 150# FLGS | 150 | 150 @ 366F | 285 @ 100F | 12 | 7 | 4.75 | 7 | 1/2 | N/A | YSF1TI0125 |
| YSF1 | 1 1/2 | 150# FLGS | 150 | 150 @ 366F | 285 @ 100F | 12.5 | 7.12 | 4.75 | 7 | 1/2 | N/A | YSF1TI0150 |
| YSF1 | 2 | 150# FLGS | 150 | 150 @ 366F | 285 @ 100F | 21 | 7.87 | 5.25 | 7 | 1/2 | 1/4 | YSF1TI0200 |
| YSF1 | 2 1/2 | 150# FLGS | 150 | 150 @ 366F | 285 @ 100F | 32 | 9.75 | 6.5 | 9.75 | 1 | 1/4 | YSF1TI0250 |
| YSF1 | 3 | 150# FLGS | 150 | 150 @ 366F | 258 @ 100F | 35 | 10.06 | 7 | 10 | 1 | 1/4 | YSF1TI0300 |
| YSF1 | 4 | 150# FLGS | 150 | 150 @ 366F | 285 @ 100F | 55 | 12.12 | 8.25 | 12 | 1 1/2 | 1/4 | YSF1TI0400 |
| YSF1 | 5 | 150# FLGS | 150 | 150 @ 366F | 285 @ 100F | 90 | 15.62 | 11.25 | 20 | 2 | 1/4 | YSF1TI0500 |
| YSF1 | 6 | 150# FLGS | 150 | 150 @ 366F | 150 @ 100F | 140 | 18.5 | 13.5 | 20 | 2 | 1/4 | YSF1TI0600 |
| YSF1 | 8 | 150# FLGS | 150 | 150 @ 366F | 285 @ 100F | 220 | 21.37 | 15.5 | 22.75 | 2 | 1/4 | YSF1TI0800 |
| YSF1 | 10 | 150# FLGS | 150 | 150 @ 366F | 285 @ 100F | 356 | 26 | 18.5 | 28 | 2 | 1/4 | YSF1TI1000 |
| YSF1 | 12 | 150# FLGS | 150 | 150 @ 366F | 285 @ 100F | 644 | 29.87 | 22.25 | 30 | 2 | 1/4 | YSF1TI1200 |
| YSF1 | 14 | 150# FLGS | 150 | 150 @ 366F | 285 @ 100F | 1000 | 36 | 25 | 36.5 | 2 | 1/4 | YSF1TI1400 |
| YSF1 | 16 | 150# FLGS | 150 | 150 @ 366F | 285 @ 100F | 1090 | 41.75 | 26.5 | 42 | 2 | 1/4 | YSF1TI1600 |
| YSF1 | 18 | 150# FLGS | 150 | 150 @ 366F | 285 @ 100F | 2400 | 46 | 31 | 45.5 | 2 | 1/4 | YSF1TI1800 |
| YSF1 | 20 | 150# FLGS | 150 | 150 @ 366F | 285 @ 100F | 2700 | 49.5 | 39 | 56 | 2 | 1/4 | YSF1TI2000 |
| YSF1 | 24 | 150# FLGS | 150 | 150 @ 366F | 285 @ 100F | 3340 | 58.37 | 45 | 68 | 2 | 1/4 | YSF1TI2400 |
| YSF2 | 1/2 | 300# FLGS | 300 | 300 @ 420F | 740 @ 100F | 7.5 | 6.62 | 3.5 | 5 | 3/8 | N/A | YSF2TI0050 |
| YSF2 | 3/4 | 300# FLGS | 300 | 300 @ 420F | 740 @ 100F | 10 | 8.31 | 3.75 | 5 | 1/2 | N/A | YSF2TI0075 |
| YSF2 | 1 | 300# FLGS | 300 | 300 @ 420F | 740 @ 100F | 13.5 | 8.31 | 3.75 | 5 | 1/2 | N/A | YSF2TI00100 |
| YSF2 | 1 1/4 | 300# FLGS | 300 | 300 @ 420F | 740 @ 100F | 26 | 10.12 | 5.5 | 8 | 1/2 | N/A | YSF2TI0125 |
| YSF2 | 1 1/2 | 300# FLGS | 300 | 300 @ 420F | 740 @ 100F | 25 | 10.25 | 5.5 | 8 | 1/2 | N/A | YSF2TI0150 |
| YSF2 | 2 | 300# FLGS | 300 | 300 @ 420F | 740 @ 100F | 26 | 9.62 | 5.25 | 7 | 1/2 | 1/4 | YSF2TI0200 |
| YSF2 | 2 1/2 | 300# FLGS | 300 | 300 @ 420F | 740 @ 100F | 40 | 10.62 | 6.5 | 9.75 | 1 | 1/4 | YSF2TI0250 |
| YSF2 | 3 | 300# FLGS | 300 | 300 @ 420F | 740 @ 100F | 52.5 | 12 | 7 | 10 | 1 | 1/4 | YSF2TI0300 |
| YSF2 | 4 | 300# FLGS | 300 | 300 @ 420F | 740 @ 100F | 94 | 14.5 | 8.25 | 12 | 1 1/2 | 1/4 | YSF2TI0400 |
| YSF2 | 5 | 300# FLGS | 300 | 300 @ 420F | 740 @ 100F | 161.5 | 19.31 | 11.25 | 17 | 2 | 1/4 | YSF2TI0500 |
| YSF2 | 6 | 300 # FLGS | 300 | 300 @ 420F | 740 @ 100F | 185.5 | 19.31 | 13.5 | 20 | 2 | 1/4 | YSF2TI0600 |
| YSF2 | 8 | 300# FLGS | 300 | 300 @ 420F | 740 @ 100F | 260 | 23.37 | 15.5 | 22.75 | 2 | 1/4 | YSF2TI0800 |
| YSF2 | 10 | 300# FLGS | 300 | 300 @ 420F | 740 @ 100F | 408 | 27.37 | 18.5 | 28 | 2 | 1/4 | YSF2TI1000 |
| YSF2 | 12 | 300# FLGS | 300 | 300 @ 420F | 740 @ 100F | 632 | 32 | 21.75 | 30 | 2 | 1/4 | YSF2TI1200 |
| YSF3 | 1/2 | 600# FLGS | 600 | 600 @ 489F | 600 @ 100F | 7.5 | 6.62 | 3.5 | 5 | 3/8 | N/A | YSF3TI0050 |
| YSF3 | 3/4 | 600# FLGS | 600 | 600 @ 489F | 1480 @ 100F | 10 | 8.31 | 3.75 | 5 | 1/2 | N/A | YSF3TI0075 |
| YSF3 | 1 | 600# FLGS | 600 | 600 @ 489F | 1480 @ 100F | 13.5 | 8.31 | 3.75 | 5 | 1/2 | N/A | YSF3TI0100 |
| YSF3 | 1 1/4 | 600# FLGS | 600 | 600 @ 489F | 1480 @ 100F | 26 | 10.12 | 5.5 | 8 | 1/2 | N/A | YSF3TI0125 |
| YSF3 | 1 1/2 | 600# FLGS | 600 | 600 @ 489F | 1480 @ 100F | 25 | 10.25 | 5.5 | 8 | 1/2 | N/A | YFS3TI0150 |
| YSF3 | 2 | 600# FLGS | 600 | 600 @ 489F | 1480 @ 100F | 32 | 11 | 7 | 10 | 1/2 | 1/4 | YSF3TI0200 |
| YSF3 | 2 1/2 | 600# FLGS | 600 | 600 @ 489F | 1480 @ 100F | 50 | 12 | 8.25 | 12.5 | 1 | 1/4 | YSF3TI0250 |
| YSF3 | 3 | 600# FLGS | 600 | 600 @ 489F | 1480 @ 100F | 65 | 13.5 | 9.25 | 14.5 | 1 | 1/4 | YSF3TI0300 |
| YSF3 | 4 | 600# FLGS | 600 | 600 @ 489F | 1480 @ 100F | 125 | 17.93 | 12.5 | 19.5 | 1 1/2 | 1/4 | YSF3TI0400 |
| YSF3 | 5 | 600# FLGS | 600 | 600 @ 489F | 1480 @ 100F | 254 | 22.25 | 15 | 23 | 2 | 1/4 | YSF3TI0500 |
| YSF3 | 6 | 600# FLGS | 600 | 600 @ 489F | 1480 @ 100F | 304 | 25.62 | 20 | 31 | 2 | 1/4 | YSF3TI0600 |
| YSF3 | 8 | 600# FLGS | 600 | 600 @ 489F | 1480 @ 100F | 526 | 31.75 | 24 | 38.5 | 2 | 1/4 | YSF3TI0800 |
| YSF3 | 10 | 600# FLGS | 600 | 600 @ 489F | 1480 @ 100F | 1090 | 37.68 | 28.5 | 45.5 | 2 | 1/4 | YSF3TI1000 |
| YSF3 | 12 | 600# FLGS | 600 | 600 @ 489F | 1480 @ 100F | 1158 | 40 | 29.31 | 44 | 2 | 1/4 | YSF3TI1200 |
| YSF5 | 2 | 1500# FLGS | 1500 | 1500 @ 603F | 3705 @ 100F | 91 | 16.5 | 9.25 | 11 | YSF5TI0200 | ||
| YSF5 | 2 1/2 | 1500# FLGS | 1500 | 1500 @ 603F | 3705 @ 100F | C/F | C/F | C/F | C/F | YSF5TI0250 | ||
| YSF5 | 3 | 1500# FLGS | 1500 | 1500 @ 603F | 3705 @ 100F | 175 | 18 | 12 | 16.5 | YSF5TI0300 | ||
| YSF5 | 4 | 1500# FLGS | 1500 | 1500 @ 603F | 3705 @ 100F | 316 | 22.5 | 15.37 | 21 | YSF5TI0400 | ||
| YSF5 | 6 | 1500# FLGS | 1500 | 1500 @ 603F | 3705 @ 100F | 766 | 32.5 | 20 | 27 | YSF5TI0600 | ||
| YSF5 | 8 | 1500# FLGS | 1500 | 1500 @ 603F | 3705 @ 100F | 1575 | 36 | 23.68 | 32 | YSF5TI800 | ||
| YSF6 | 2 | 2500# FLGS | 2500 | 2500 @ 673F | 6170 @ 100F | C/F | 16.26 | 10.5 | 14 | YSF6TI0200 | ||
| YSF6 | 3 | 2500# FLGS | 2500 | 2500 @ 673F | 6170 @ 100F | 350 | 22 | 13 | 20 | YSF6TI0300 | ||
| YSF6 | 4 | 2500# FLGS | 2500 | 2500 @ 673F | 6170 @ 100F | 550 | 29.12 | 17 | 25 | YSF6TI0400 | ||
| YSF6 | 6 | 2500# FLGS | 2500 | 2500 @ 673F | 6170 @ 100F | C/F | 36.75 | 21.73 | 31 | YSF6TI0600 | ||
| YSF6 | 8 | 2500# FLGS | 2500 | 2500 @ 673F | 6170 @ 100F | C/F | 45 | 29 | 50 | YSF6TI0800 |
