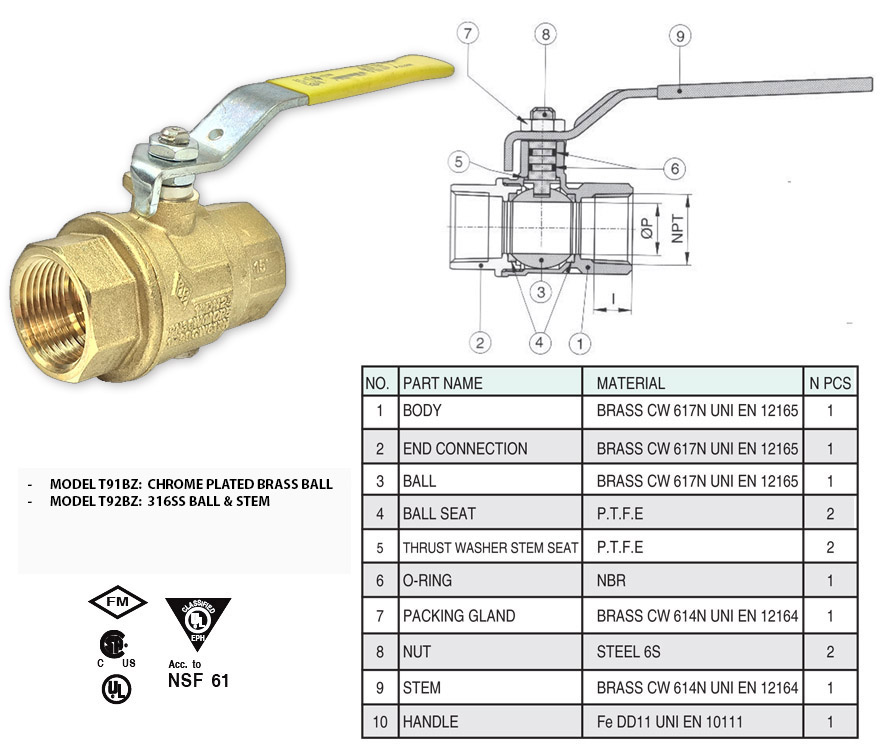

OVERVIEW: The RB Series T91/T92 Ball Valves are for applications where the high flow capcity of a full bore design is required. The T91-BZ with chrome plated ball/stem, and the T92-BZ with 316SS/CF8M ball/stem. NSF/ANSI 61, FM, UL certified. With FNPT thread ends, in sizes 1/2" to 2". 600psi WOG 125 WSP.
| CONSTRUCTION | FEATURES | ||
| • 2-Piece Body Design | • Full Port Minimizes Pressure Drop & Prolongs Life | ||
| • Hot Forged Brass Body Material | • Blowout Protection Stem | ||
| • PTFE Seat Material | |||
| • Testing to 100% Electronically Tested in the | |||
| Open and Closed Position at 80psi |
swipe to see more products
| MODEL | TYPE |
SIZE
(in)
|
LENGTH
(in)
|
ENDS | BODY MTL | Cv |
PRESS (STEAM)
(psi)
|
PRESS (WOG)
(psi)
|
WT
(lbs)
|
NOTE | ITEM NO |
|---|---|---|---|---|---|---|---|---|---|---|---|
| RB SERIES | T91-BZ | 1/4 | 1.77 | FNPT THREAD | BRASS | 6.5 | 150 | 600 | 0.33 | CHROME PLTD BALL/STEM | VBALL-F-RB-T910025 |
| RB SERIES | T91-BZ | 3/8" | 1.77 | FNPT THREAD | BRASS | 10 | 150 | 600 | 0.33 | CHROME PLTD BALL/STEM | VBALL-F-RB-T910038 |
| RB SERIES | T91-BZ | 1/2" | 2.32 | FNPT THREAD | BRASS | 45 | 150 | 600 | 0.48 | CHROME PLTD BALL/STEM | VBALL-F-RB-T910050 |
| RB SERIES | T91-BZ | 3/4" | 2.52 | FNPT THREAD | BRASS | 70 | 150 | 600 | 0.79 | CHROME PLTD BALL/STEM | VBALL-F-RB-T910075 |
| RB SERIES | T91-BZ | 1" | 3.19 | FNPT THREAD | BRASS | 95 | 150 | 600 | 1.22 | CHROME PLTD BALL/STEM | VBALL-F-RB-T910100 |
| RB SERIES | T91-BZ | 1 1/4" | 3.66 | FNPT THREAD | BRASS | 130 | 150 | 600 | 2.14 | CHROME PLTD BALL/ STEM | VBALL-F-RB-T9101125 |
| RB SERIES | T91-BZ | 1 1/2" | 4.02 | FNPT THREAD | BRASS | 300 | 150 | 600 | 3.2 | CHROME PLTD BALL/STEM | VBALL-F-RB-T910150 |
| RB SERIES | T91-BZ | 2" | 4.76 | FNPT THREAD | BRASS | 400 | 150 | 600 | 4.08 | CHROME PLTD BALL/STEM | VBALL-F-RB-T910200 |
| RB SERIES | T91-BZ | 2 1/2" | 6.14 | FNPT THREAD | BRASS | 600 | 150 | 450 | 8.28 | CHROME PLTD BALL/STEM | VBALL-F-RB-T910250 |
| RB SERIES | T91-BZ | 3" | 6.97 | FNPT THREAD | BRASS | 750 | 150 | 450 | 13 | CHROME PLTD BALL/STEM | VBALL-F-RB-T910300 |
| RB SERIES | T91-BZ | 4" | 8.50 | FNPT THREAD | BRASS | 1400 | 150 | 450 | 22.07 | CHROME PLTD BALL/STEM | VBALL-F-RB-T910400 |
| RB SERIES | T91-BZ | 1/4" | 1.77 | FNPT THREAD | BRASS | 6.5 | 150 | 600 | 0.33 | 316 STAINLESS BALL/STEM | VBALL-F-RB-T920025 |
| RB SERIES | T92-BZ | 3/8" | 1.77 | FNPT THREAD | BRASS | 10 | 150 | 600 | 0.33 | 316 STAINLESS BALL/STEM | VBALL-F-RB-T920038 |
| RB SERIES | T92-BZ | 1/2 | 2.32 | FNPT THREAD | BRASS | 45 | 150 | 600 | 0.48 | 316 STAINLESS BALL/STEM | VBALL-F-RB-T920050 |
| RB SERIES | T92-BZ | 3/4" | 2.52 | FNPT THREAD | BRASS | 70 | 600 | 150 | 0.79 | 316 STAINLESS BALL/STEM | VBALL-F-RB-T920075 |
| RB SERIES | T92-BZ | 1" | 3.19 | FNPT THREAD | BRASS | 95 | 600 | 150 | 1.22 | 316 STAINLESS BALL/STEM | VBALL-F-RB-T920100 |
| RB SERIES | T92-BZ | 1 1/4" | 3.66 | FNPT THREAD | BRASS | 130 | 600 | 150 | 2.14 | 316 STAINLESS BALL/STEM | VBALL-F-RB-T920125 |
| RB SERIES | T92-BZ | 1 1/2" | 4.02 | FNPT THREAD | BRASS | 300 | 600 | 150 | 3.2 | 316 STAINLESS BALL/STEM | VBALL-F-RB-T920150 |
| RB SERIES | T92-BZ | 2" | 4.76 | FNPT THREAD | BRASS | 400 | 600 | 150 | 4.08 | 316 STAINLESS BALL/STEM | VBALL-F-RB-T920200 |
| RB SERIES | T92-BZ | 2 1/2" | 6.14 | FNPT THREAD | BRASS | 600 | 450 | 150 | 8.28 | 316 STAINLESS BALL/STEM | VBALL-F-RB-T920250 |
| RB SERIES | T92-BZ | 3" | 6.97 | FNPT THREAD | BRASS | 750 | 450 | 150 | 13 | 316 STAINLESS BALL/STEM | VBALL-F-RB-T920300 |
| RB SERIES | T92-BZ | 4" | 8.50 | FNPT THREAD | BRASS | 1400 | 450 | 150 | 22.07 | 316 STAINLESS BALL/STEM | VBALL-F-RB-T920400 |
