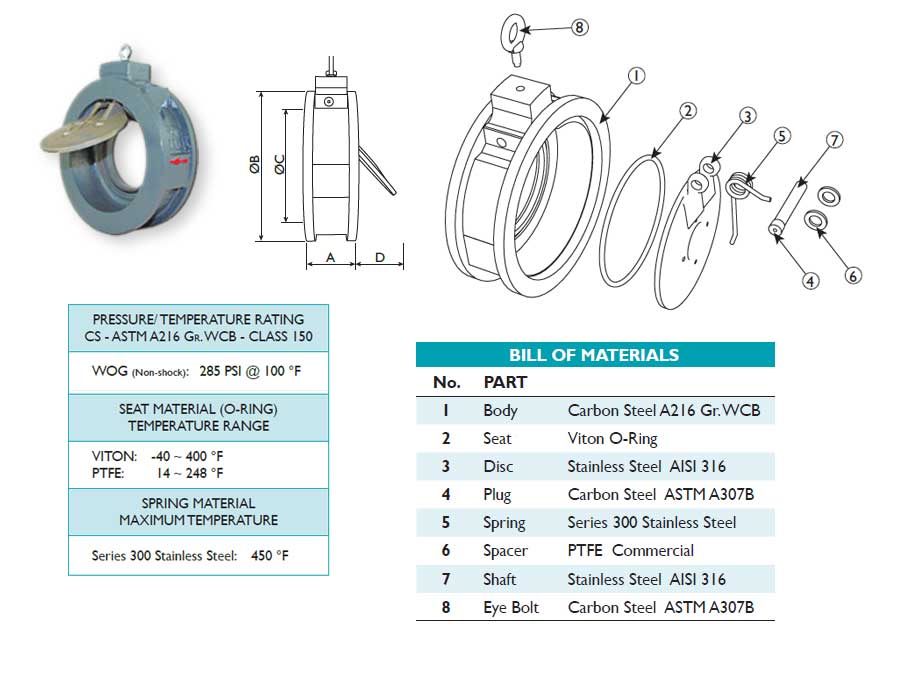

OVERVIEW: The SS-CW epoxy painted carbon steel swing check valves is a Class 150# economical design with low weight and short laying length that saves initial cost, space, and installation time when compared to a full body swing check valve. Head loss is minimized with a short, straight, and unobstructed flow path. And the spring-loaded disc is designed with very low cracking pressure to reduce the amount of energy needed to open the valve.
The SS-CW features anti-corrosive, stainless steel trim, with a field replaceable Viton soft seat to ensure a bubble tight seal that meets or exceeds API 598 est requirements.
Acceptable for wastewater.
swipe to see more products
| MODEL | TYPE |
SIZE
(in)
|
BODY MTL | SEAT | DISC | CLASS | Cv |
WT
(lbs)
|
A
(in)
|
B
(in)
|
C
(in)
|
D
(in)
|
ITEM NO |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SS-CW1 | SWING | 2 | CARBON STEEL | VITON | STAINLESS STEEL | 150 | 62 | 5.0 | 2.38 | 4.0 | 1.313 | 0.5 | VCSS-CW1SVT0200 |
| SS-CW1 | SWING | 2.5 | CARBON STEEL | VITON | STAINLESS STEEL | 150 | 62 | 5.0 | 2.38 | 4.00 | 1.313 | 0.5 | VCSS-CW1SVT0250 |
| SS-CW1 | SWING | 3 | CARBON STEEL | VITON | STAINLESS STEEL | 150 | 166 | 8.0 | 2.62 | 5.25 | 2.063 | 0.8 | VCSS-CW1SVT0300 |
| SS-CW1 | SWING | 4 | CARBON STEEL | VITON | STAINLESS STEEL | 150 | 318 | 12.0 | 2.62 | 6.75 | 3.00 | 1.87 | VCSS-CW1SVT0400 |
| SS-CW1 | SWING | 5 | CARBON STEEL | VITON | STAINLESS STEEL | 150 | 471 | 18.0 | 3.25 | 7.75 | 3.75 | 3.3 | VCSS-CW1SVT0500 |
| SS-CW1 | SWING | 6 | CARBON STEEL | VITON | STAINLESS STEEL | 150 | 720 | 22.0 | 3.75 | 8.625 | 4.75 | 2.7 | VCSS-CW1SVT0600 |
| SS-CW1 | SWING | 8 | CARBON STEEL | VITON | STAINLESS STEEL | 150 | 1384 | 30.0 | 5 | 10.875 | 6.438 | 3 | VCSS-CW1SVT0800 |
| SS-CW1 | SWING | 10 | CARBON STEEL | VITON | STAINLESS STEEL | 150 | 2298 | 48.0 | 5.75 | 13.25 | 7.625 | 4.35 | VCSS-CW1SVT1000 |
| SS-CW1 | SWING | 12 | CARBON STEEL | VITON | STAINLESS STEEL | 150 | 4153 | 1470.0 | 7.12 | 16.0 | 9.50 | 4 | VCSS-CW1SVT1200 |
