The Stayflow BIF1C Basket Strainer is a simplex-style strainer that combines solid cast iron construction with a quick-opening clamped cover, allowing faster access to the basket without unbolting hardware. This makes the BIF1C ideal for systems requiring frequent cleaning with limited shutdown time.
It comes standard with a 304 stainless steel basket and is rated to 200psi at 150°F. Available in 2" to 20" sizes, all with ANSI 125/150# flanged ends, the BIF1C accommodates various screen configurations, including 1/32", 1/16", 1/8", and mesh.
For applications where cleaning is less frequent and cost is a priority, a bolted cover version is available—see Model BIF1.
FEATURES:
| • Quick-opening clamped cover for fast maintenance | • Screen options: 1/32", 1/16", 1/8", mesh |
| • 304 stainless steel basket standard | • ANSI 125/150# flanged ends |
| • 200psi at 150°F pressure rating | • Heavy-duty cast iron body |
|
• Blowdown port for draining and cleaning |

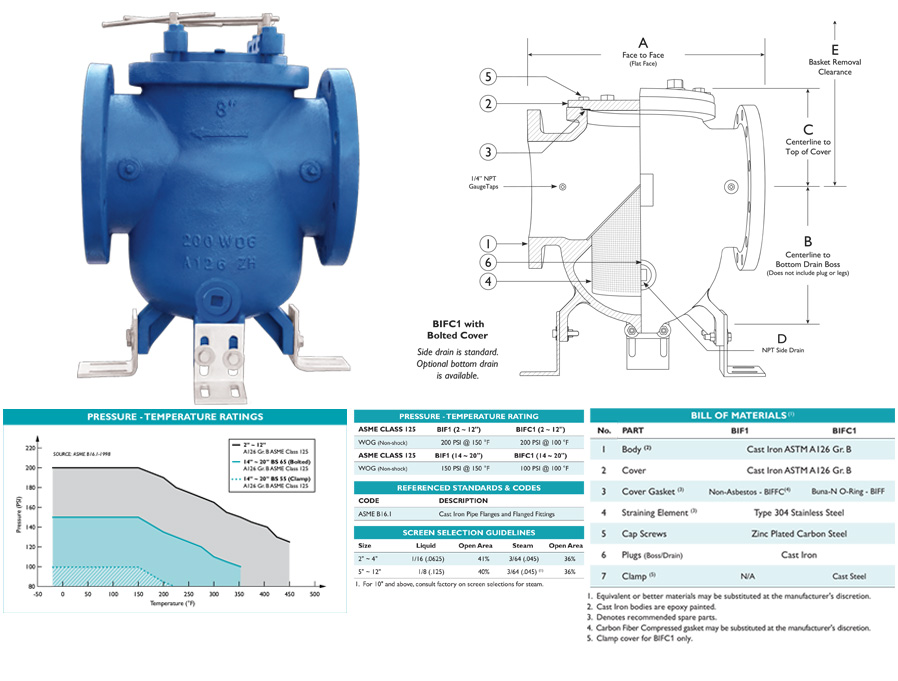

Complete dimensional and material data—see Submittal Sheet
| MODEL |
SIZE
(in)
|
ENDS | Cv |
PRESS (WOG)
(psi)
|
WT
(lbs)
|
A
(in)
|
B
(in)
|
C
(in)
|
D
(in)
|
E
(in)
|
ITEM NO |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BIFC | 2 | 125# FLGS | 45 | 150 | 31 | 8.625 | 4.88 | 3.83 | 1/2 | 10.875 | BIFC1TI0200 |
| BIFC | 2-1/2 | 125# FLGS | 90 | 150 | 30 | 7.562 | 5.12 | 3.75 | 3/4 | 10.875 | BIFC1Ti0250 |
| BIFC | 3 | 125# FLGS | 140 | 150 | 40 | 8.75 | 4.63 | 5.125 | 3/4 | 11.25 | BIFC1TI0300 |
| BIFC | 4 | 125# FLGS | 290 | 150 | 64 | 11.25 | 7.00 | 5.375 | 1 | 15.50 | BIFC1TI0400 |
| BIFC | 5 | 125# FLGS | 500 | 150 | 84 | 12.25 | 7.88 | 4.75 | 1 | 15.50 | BIFC1TI0500 |
| BIFC | 6 | 125# FLGS | 800 | 150 | 142 | 14.00 | 8.00 | 7.00 | 1-1/4 | 18.25 | BIFC1TI0600 |
| BIFC | 8 | 125# FLGs | 1600 | 150 | 244 | 17.125 | 11.38 | 8.00 | 1-1/2 | 23.375 | BIFC1TI0800 |
| BIFC | 10 | 125# FLGS | 2800 | 150 | 416 | 22.00 | 14.12 | 8.82 | 1-1/2 | 27.50 | BIFC1TI1000 |
| BIFC | 12 | 125# FLGS | 3700 | 150 | 732 | 25.25 | 20.25 | 10.32 | 2 | 35.00 | BIFC1TI1200 |
| BIFC | 14 | 125# FLGS | 5100 | 150 | 992 | 29.00 | 30.00 | 15.00 | 2 | 45.00 | BIFC1TI1400 |
| BIFC | 16 | 125# FLGS | 6800 | 150 | 1735 | 31.875 | 36.66 | 16.00 | 2 | 55.00 | BIFC1T!1600 |
| BIFC | 20 | 125# FLGS | 10900 | 150 | C/F | 36.49 | 38.44 | 15.75 | 2 | 65.00 | BIFC1TI2000 |
