The Stayflow BIF1 Basket Strainer is a simplex-style cast iron strainer designed for liquid service in commercial and industrial systems. Its bolted cover provides a secure seal and can be removed when the system is offline for maintenance. A 304 stainless steel basket is included as standard to trap debris and protect downstream equipment such as pumps and valves.
The BIF1 is rated to 200psi at 150°F and is available in 2" to 20" sizes, with ANSI 125/150# flanged ends. Basket screens come standard with 1/16" perforation, with options for 1/32", 1/8", or mesh available to suit a range of filtration requirements.
For applications requiring faster access to the basket, a quick-opening clamped cover version is available—see Model BIF1C.
FEATURES:
| • Bolted cover for secure sealing | • Screen options: 1/32", 1/16", 1/8", mesh |
| • 304 stainless steel basket included | • Threaded or ANSI 125/150# flanged ends |
| • 200psi at 150°F pressure rating | • Cast iron body (ASTM A126 Class B) |
| • Drain connection for basket blowdown |

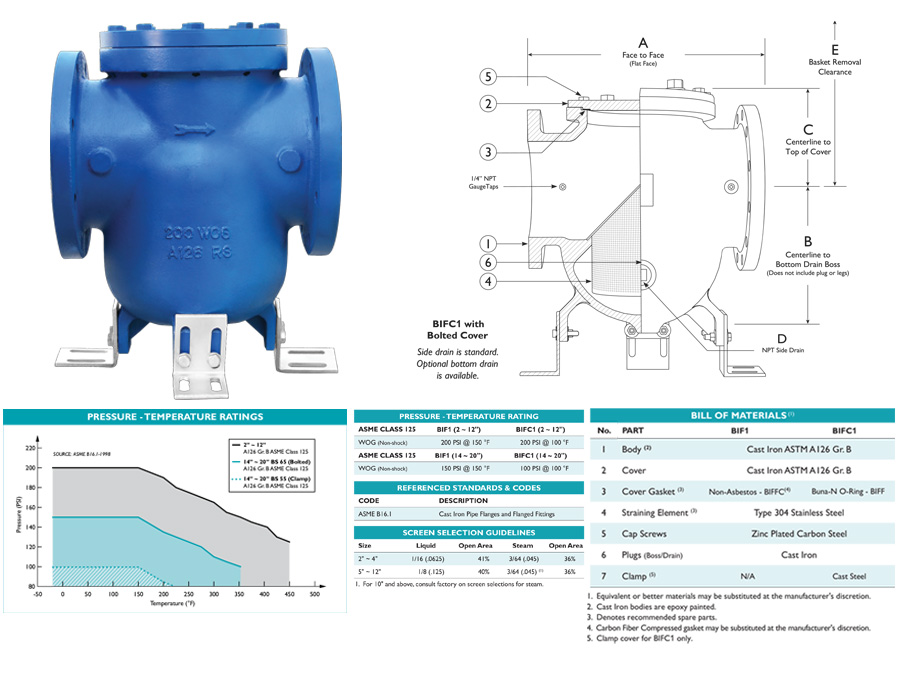

Complete dimensional and material data—see Submittal Sheet
| MODEL |
SIZE
(in)
|
ENDS |
PRESS (WOG)
(psi)
|
WT
(lbs)
|
A
(in)
|
B
(in)
|
C
(in)
|
D
(in)
|
E
(in)
|
ITEM NO |
|---|---|---|---|---|---|---|---|---|---|---|
| BIF1 | 2 | 125 FLG | 200 | 27lbs | 8-5/8 | 7-7/8 | 3.83 | 1/2 | 10-7/8 | BIF1TI0200 |
| BIF1 | 2-1/2 | 125 FLG | 200 | 30 | 7.562 | 5.12 | 3.75 | 3/4 | 10-7/8 | BIF1TI0250 |
